Alef Series
LED Street Light

Alef series CE CB ENEC IP67 IK09 60W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Alef series CE CB ENEC IP67 IK09 100W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Alef series CE CB ENEC IP67 IK09 150W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Alef series CE CB ENEC IP67 IK09 180W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Alef series CE CB ENEC IP67 IK09 30W 140LM/W adjustable photocell dia-cast aluminum photocell dimmable led street light,led urban lights,led road luminaires,led street lamp,eight years warranty,tool-free maintenance,class II.
Previous
Next

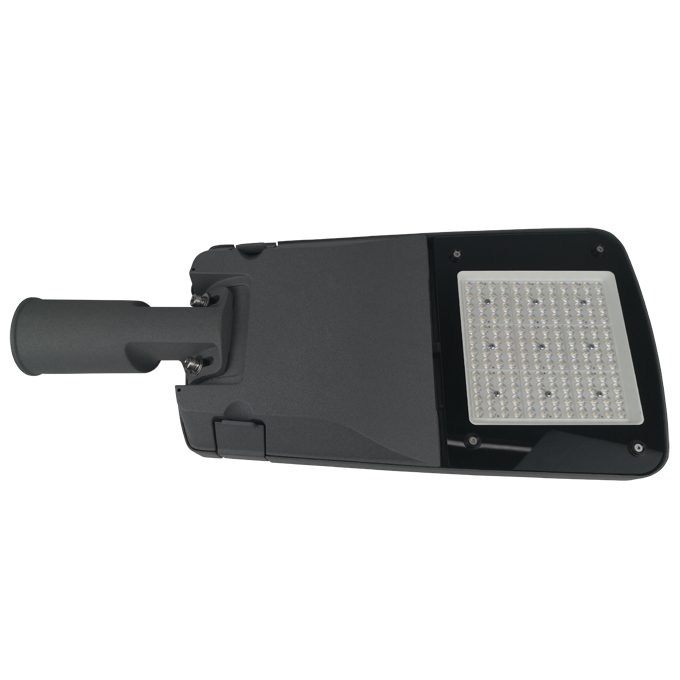

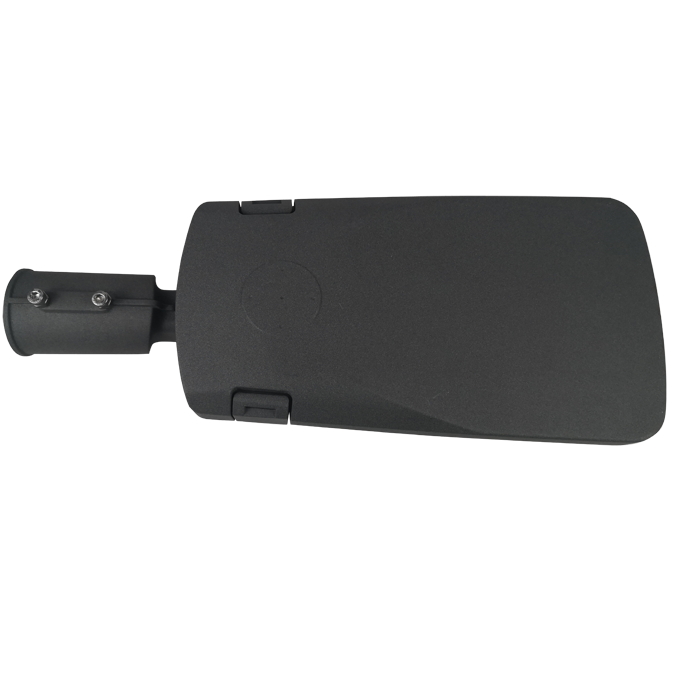

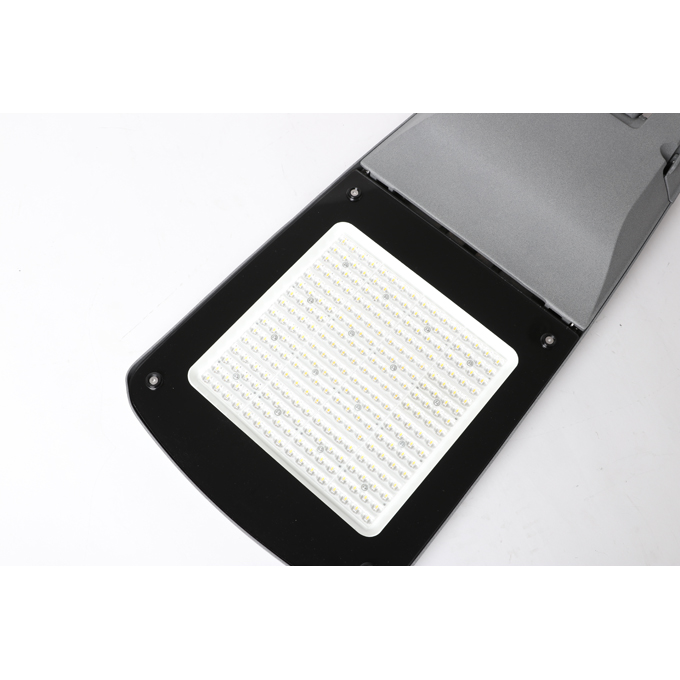

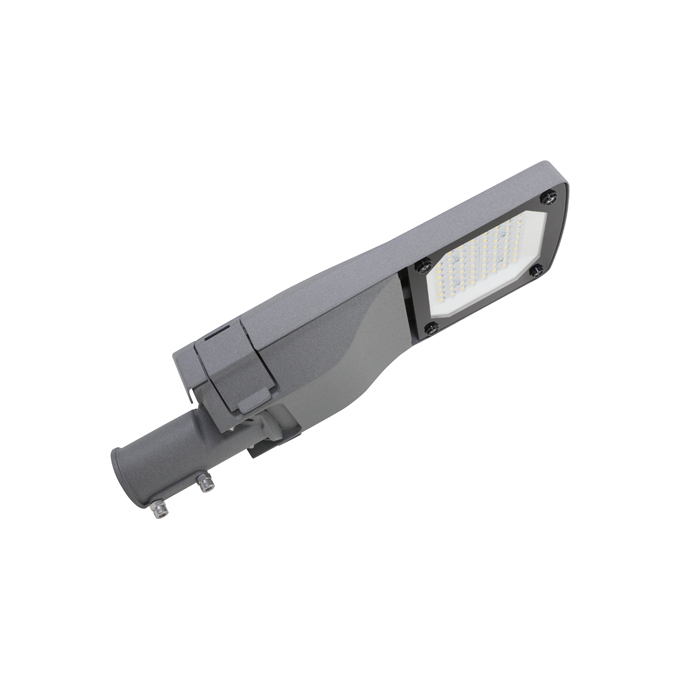

Alef Series LED Street Light

  • Cree/ Osram/ Philips-Lumileds and Samsung led chips options, flip chip technology, single unit’s damage won’t affect others’ normal work;
  • Easy to change the driver and led modules; class I, class II driver with dimmer optional, 0-10v, PWM, Dali
  • Designed to last at least 100,000 hours at L80;
  • Multiple lighting distributions available, fit for different road and standard;
  • Standard color temperatures: 3000K, 4000K, 6500K; minimum 80 CRI
  • IK09 and IP67 modules: highest waterproof level, hot-pluggable, easy for installation and replacement;
  • Multiple housing colors: black, white, grey;
  • CE,CB,ENEC Certification;
  • Photocell led road luminaires,tool-free led street lamp;
  • Adjustable angle design;
  • Power automactically switch off when opening
  • 8-year limited warranty;

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot,urban lights,Highway roads etc.

Technical Characteristics

Model No.WattageLed QtyLumenProduct sizeIP IKLed BrandDriver BrandOptionWarranty
LS-ALEF-S4040W16pcs5200lm577*232.6*103.2mm







IP65,IK08





Philips/

Cree/

Osram





Meanwell/
Inventroincs/
Philips/
Moso





SPD/
7pin base/
breaker





8 years

LS-ALEF-S6060W24pcs7800lm577*232.6*103.2mm
LS-ALEF-S8080W24pcs10400lm577*232.6*103.2mm
LS-ALEF-M100100W36pcs13000lm627*271.5*103.2mm
LS-ALEF-M120120W48pcs15600lm627*271.5*103.2mm
LS-ALEF-M150150W64pcs19500lm627*271.5*103.2mm
LS-ALEF-L120120W48pcs15600lm768*301*103.5mm
LS-ALEF-L150150W64pcs19500lm768*301*103.5mm
LS-ALEF-L200200W80pcs26000lm768*301*103.5mm
