OP Series
Solar LED Street Light

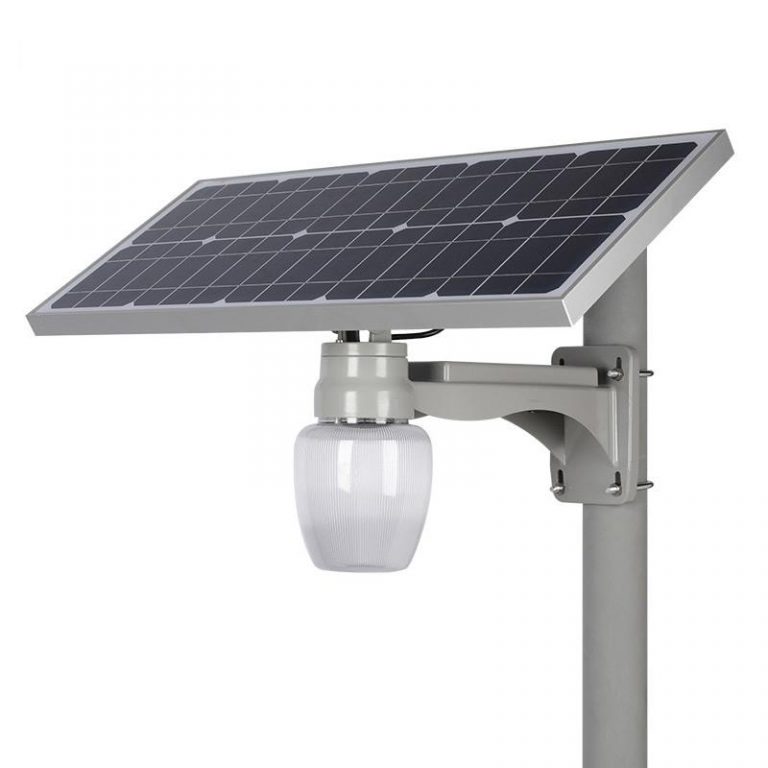

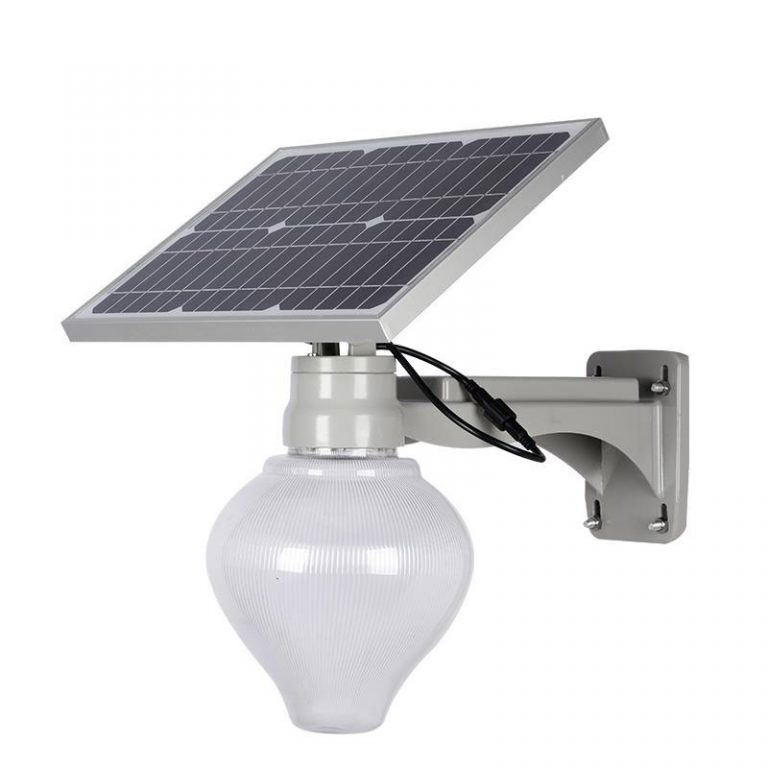

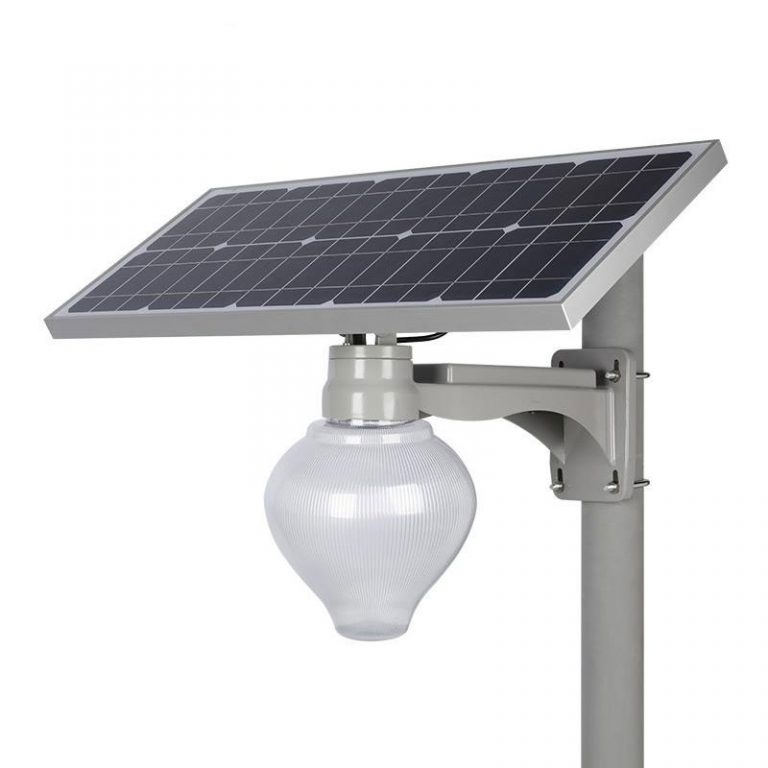

OP Series LED Street Light

  • Integrated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
  • Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
  • With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion, users can choose the optimal working mode according to different purposes and lighting conditions.
  • Professional waterproof design, waterproof rating IP65.
  • It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
  • Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
  • Wind resistance rating: 41.5 m / s.

Color Options

Color Option

Application

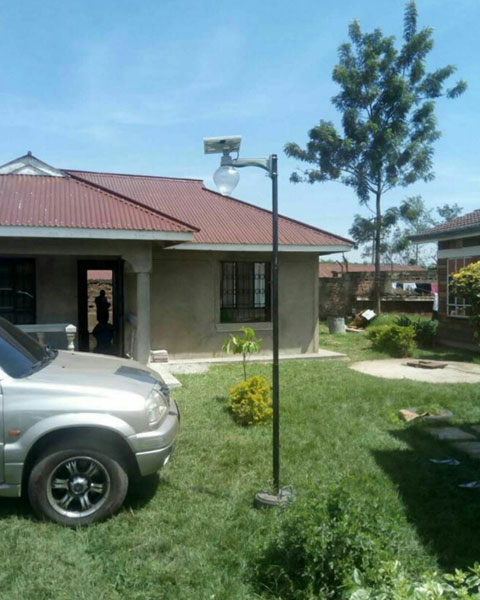

Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.LS-OP-115LS-OP-120LS-OP-130
LED watt15W20W30W
Solar panel14W15V poly14W15V poly14W15V poly
BatteryLithium  6AH12VLithium 8AH12VLithium  12AH11.1V
LED brandBridgeLux/Philips/Osram
 Lumen110lm/W
Lighting Angel170*170°
CCT3000K-6500K
Lifetime50000H
Working Temp一20℃~十60℃
IP RatingIP67
Motion sensoirDetection angle120°,Distance 7-12m
Working modeMotion mode/Timer control/Mixed mode
Charging time6-8hours
Discharging time10-12hours per day,3-5rainy days
Install height3-6m3-6m5-7m
MaterialDie-casting Aluminum Alloy
Product size
468*290*318mm
468*430*318mm468*680*318mm
G. wt/Carton8.3KG8.3KG12.5KG
Package Size468*290*318mm468*430*318mm 468*680*318mm
CertificateCE/ROHS/TUV/IP67
