TC Series
Solar LED Street Light

TC series smart MPPT CE Waterproof 30W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty
TC series smart MPPT CE Waterproof 50W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty
TC series smart MPPT CE Waterproof 40W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty
TC series smart MPPT CE Waterproof 80W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty
TC series smart MPPT CE Waterproof 20W adjustable Motion Sensor Remote Control Integrated lithium battery Solar led Street Light,all in one Solar Street Light,LiFePO4 solar lamp,Solar Garden Light,led urban lights,led road luminaires,led street lamp,five years warranty
Previous
Next

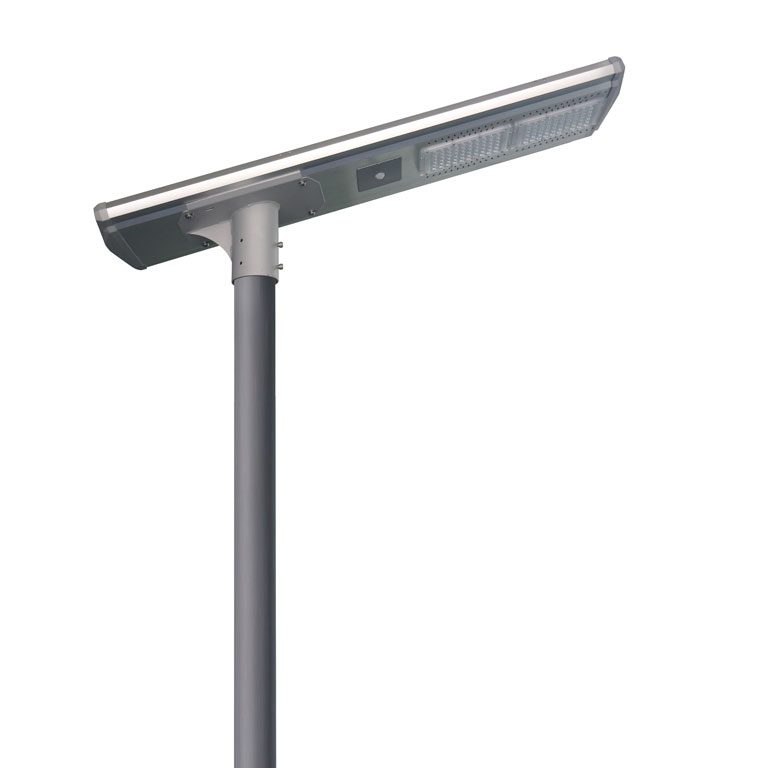

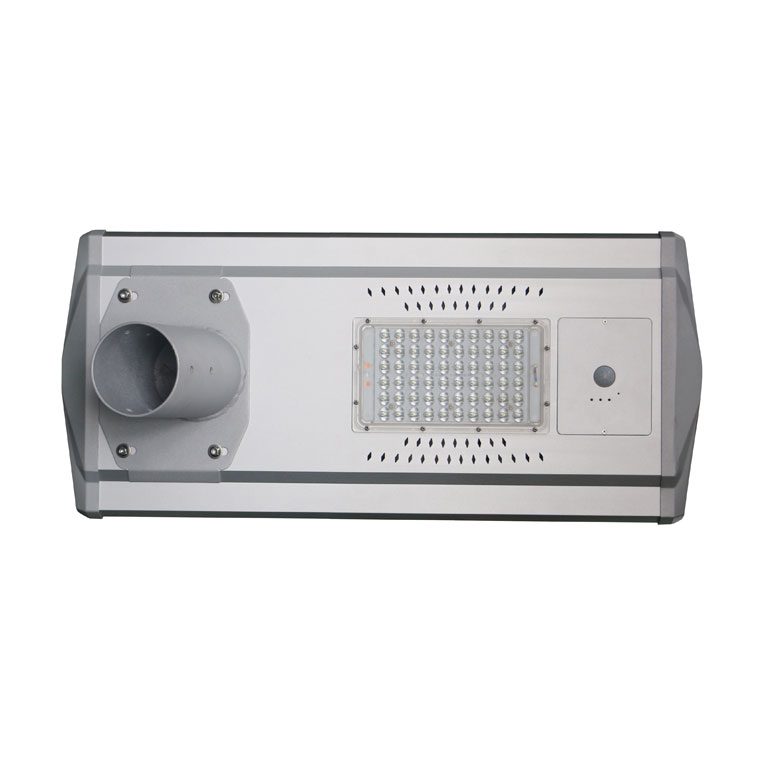

TC Series LED Street Light

  • Integrated design, small size, low transportation cost; simple installation, one-button intelligent switch, easy to use; all parts can be easily replaced, saving cost.
  • Intelligent controller, intelligent power automatic adjustment function matches PIR motion infrared sensor to ensure effective illumination brightness and endurance time.
  • With IR infrared remote control function, it is easy to realize the working mode (induction mode, time control mode, mixed mode) conversion, users can choose the optimal working mode according to different purposes and lighting conditions.
  • Professional waterproof design, waterproof rating IP65.
  • It adopts special waterproof plug-in connector, color proof design, reverse protection, missed connection, misconnection and other protection functions.
  • Support a variety of lamp arms to meet different latitude areas and different forms of lamp installation requirements.
  • Wind resistance rating: 41.5 m / s.

Color Options

Color Option

Application

Municipal road, street, Public Park, parking lot, etc.

Technical Characteristics

Model No.LS-TC-520LS-TC-530LS-TC-540LS-TC-550LS-TC-560LS-TC-570LS-TC-580
LED watt20W30W40W50W60W70W80W
Solar panel35W18V poly43W18V poly50W18V poly60W18V poly68W18V poly78W18V poly78W18V poly
BatteryLithium  140WH3.7VLithium  192WH3.7VLithium  251WH3.7VLithium  303WH3.7VLithium  362WH3.7VLithium  388WH3.7VLithium  388WH3.7V
LiFePO4 134WH3.2VLiFePO4 179WH3.2VLiFePO4 224WH3.2VLiFePO4 268WH3.2VLiFePO4 313WH3.2VLiFePO4 358WH3.2VLiFePO4 358WH3.2V
LED brandBridgeLux/Philips/Osram
 Lumen140lm/W
Lighting Angel150*70°
CCT3000K-6500K
Lifetime50000H
Working Temp一20℃~十60℃
IP RatingIP67
Motion sensoirDetection angle120°，Distance 7-12m
Working modeMotion mode/Timer control/Mixed mode
Charging time6-8hours
Discharging time10-12hours per day，3-5rainy days
Install height3-6m3-6m5-7m5-8m5-8m6-10m8-12m
MaterialDie-casting Aluminum Alloy
Product size724*315*206 mm882*315*206 mm1031*315*206 mm1198*315*206 mm1356*315*206 mm1514*315*206 mm1514*315*206 mm
G. wt/Carton8.0KG12.0KG14.0KG16.5KG16.5KG21.5KG21.5KG
Package Size830*390*120 mm990*390*120 mm1140*390*120 mm1310*390*120 mm1460*390*120 mm1620*390*120 mm1620*390*120 mm
CertificateCE/ROHS/TUV/IP67
